Name: DB DRIVE 10" 1200W WDX10MB10-8
Brand: DB DRIVE
SKU: 950
Price: 169.99 USD
Availability: InStock

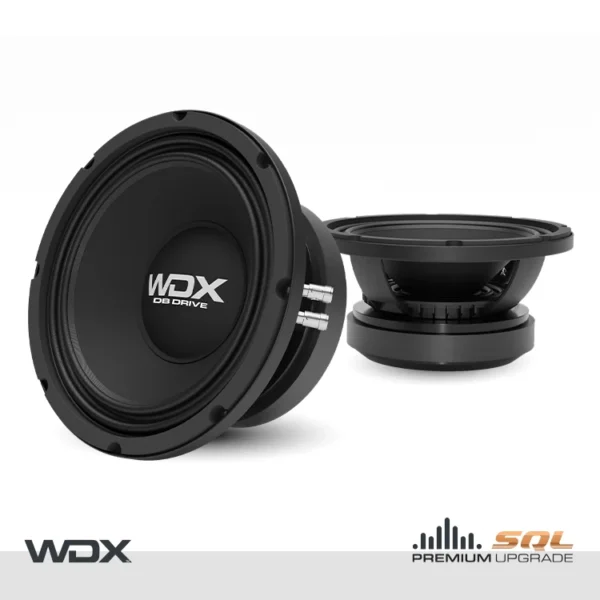

DB DRIVE 10″ 1200W WDX10MB10-8

Dynamic Power Handling: 1200 Watts
Nominal Power Handling: 600 Watts
Impedance: 8Ω Voice Coil
Resonant Frequency (fs): 58.6 Hz
D.C. Voice Coil Resistance (Re): 8Ω
Mechanical Quality Factor (Qms): 3.39
Electrical Quality Factor (Qes): 0.50
Total Quality Factor (Qts): 0.43
Equivalent Air Volume to Cms (Vas): 22.8 L
Mass of Diaphragm/Coil (Mms): 58.6 g
Force Factor (BL): 15.3
Sound Pressure Level (SPL): 91.5dB
Dimensions
Outside Diameter: 10.28″/ 261 mm
Cutout Diameter: 9.06″/ 230 mm
Mounting Depth: 4.56″/ 115 mm

4 in stock

The WDX10-MB10-8 is a 10-inch midbass speaker engineered for high-output car audio systems. It features a 3.5″ high-temperature voice coil with shorting ring , paired with a ferrite oxide magnet for high effeciency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 1200 watts and a nominal power rating of 600 watts, this speaker is built for unmatched performance and durability
